AWA LSZH Kab IEC 60502 600/1000V
Aplikasyon:
Kab pouvwa apwopriye pou rezo kouran elektrik ak antèman dirèk, kote dife ak emisyon lafimen ak lafimen toksik kreye yon menas potansyèl grav. Blende LSZH pouvwa kab pou Britanik Standard BS6724 & IEC 60502 apwopriye pou rezo kouran elektrik
 |
 |
 |

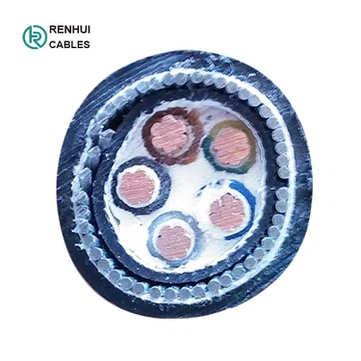

Desen kab, AWA LSZH Kab IEC 60502 600/1000V
Estanda, AWA LSZH Kab IEC 60502 600/1000V
Se kab pouvwa a fabrike dapre IEC 60502-1:2004.
Li se apwopriye yo dwe mete nan liy lan kab pouvwa ak vòltaj rated nan {{0}}.6/1kv (U0/U) pou transmisyon pouvwa.
 |
 |
Fich done teknik, AWA LSZH Kab IEC 60502 600/1000V
| No x mm2 | Faz | Entèn djenn | Blende | Eksteryè djenn | Pwa nan kab | |||
| Dyamèt kondiktè mm | Epesè XLPE mm | Epesè mm | Dyamèt fil mm |
Epesè nan djenn mm | Konplete Dyamèt mm | Kwiv kg/km |
Aliminyòm kg/km |
|
| 1*1.5 | 1.38 | 0.7 | 1 | 0.8 | 1.8 | 10 | 143.8 | 134.5 |
| 1*2.5 | 1.78 | 0.7 | 1 | 0.8 | 1.8 | 10.4 | 162.4 | 146.9 |
| 1*4 | 2.25 | 0.7 | 1 | 0.8 | 1.8 | 10.9 | 187 | 162.2 |
| 1*6 | 2.76 | 0.7 | 1 | 0.8 | 1.8 | 11.4 | 216.3 | 178.9 |
| 1*10 | 4 | 0.7 | 1 | 0.8 | 1.8 | 12.6 | 278.7 | 216.1 |
| 1*16 | 5.1 | 0.7 | 1 | 0.8 | 1.8 | 13.7 | 353 | 255.5 |
| 1*25 | 6.3 | 0.9 | 1 | 0.8 | 1.8 | 15.3 | 471.7 | 319.2 |
| 1*35 | 7 | 0.9 | 1 | 0.8 | 1.8 | 16 | 574.4 | 361.9 |
| 1*50 | 8.2 | 1 | 1 | 1.25 | 1.8 | 18.3 | 768.2 | 480.8 |
| 1*70 | 10 | 1.1 | 1 | 1.25 | 1.8 | 20.3 | 1014 | 592.2 |
| 1*95 | 11.6 | 1.1 | 1 | 1.25 | 1.8 | 21.9 | 1284 | 704.1 |
| 1*120 | 13 | 1.2 | 1 | 1.6 | 1.8 | 24.2 | 1601.8 | 870.7 |
| 1*150 | 14.6 | 1.4 | 1 | 1.6 | 1.8 | 26.2 | 1931.3 | 1019 |
| 1*185 | 16.2 | 1.6 | 1 | 1.6 | 1.8 | 28.2 | 2320.1 | 1182.8 |
| 1*240 | 18.4 | 1.7 | 1 | 1.6 | 1.9 | 30.8 | 2900.7 | 1426 |
| 1*300 | 20.6 | 1.8 | 1 | 1.6 | 1.9 | 33.2 | 3509 | 1665.6 |
| 1*400 | 23.8 | 2 | 1.2 | 2 | 2.1 | 38.4 | 4628.7 | 2216.6 |
| 1*500 | 26.6 | 2.2 | 1.2 | 2 | 2.2 | 41.8 | 5708.8 | 2646.8 |
| 1*630 | 30 | 2.4 | 1.2 | 2 | 2.3 | 45.8 | 7125 | 3206.9 |
| 1*800 | 34 | 2.6 | 1.4 | 2.5 | 2.5 | 52 | 9119.4 | 4132.8 |
Anbalaj, AWA LSZH Kab IEC 60502 600/1000V
- Tanbou an bwa asye (fumigasyon)
Longè kab nan chak tanbou: 1000m/2000m oswa selon kondisyon aktyèl longè kab.
-Gwosè tanbou:
Dapre longè kab ak gwosè veso
Yo nan lòd yo site ou pri egzat, tanpri di nou kantite longè kab ou bezwen. Pi gwo kantite, plis benefis rabè pare pou ou!
- Pò anbakman:
Kendao, oswa lòt pò selon kondisyon ou yo.
-Machandisman lanmè:
FOB/C&F/CIF sitasyon yo tout disponib.
