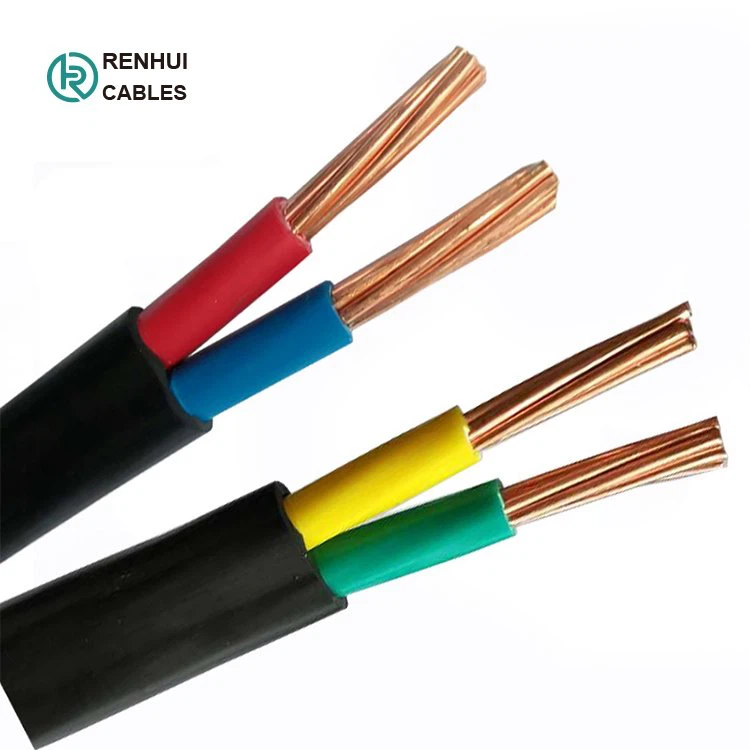

-NYY, NYY-O, NYY-J PVC izole kab.
{{0}.6/1KV, CU/PVC/PVC/PVC, IEC{}}}
-Aplikasyon: pouvwa ak kontwòl kab pou enstalasyon fiks
-Ka itilize andedan kay la, deyò, anba tè, nan konkrè ak nan dlo.
Voye rechèch
Chat kounye a
Telechaje Katalòg
Sètifika CE-Renhui
ISO9001-Renhui
Dekri teren

Aplikasyonn(PVC izole kab):
Pouvwa ak kab kontwòl pou enstalasyon fiks. Èske yo ka itilize andedan kay la, deyò, anba tè, nan konkrè ak nan dlo.

Estanda (PVC izole kab):
IEC60228, IEC 60502-1
Ignifuge flanm dife dapre IEC/EN 60332-1-2


CKarakteristik (PVC izole kab):
Evalyasyon vòltaj Uo/U: 0.6/1kV
Evalyasyon Tanperati
Fiks: -15ºC a +70ºC
Fleksi: -5ºC rive +50ºC
Reyon koube minimòm fiks: 12 x dyamèt jeneral

Konstriksyon(PVC izole kab):

Kondiktè

RE: Klas 1 kondiktè kwiv solid

RM: Klas 2 kondiktè kwiv bloke

Izolasyon

PVC (klori polivinil)

Plen

PP kòd filler

Djenn

PVC (klori polivinil)

Idantifikasyon Nwayo(oswa selon kliyankondisyon)

3 nwayo: vèt/jòn ble mawon

4 nwayo: vèt/jòn mawon nwa gri

5 nwayo: vèt/jòn mawon nwa gri ble

7 nwayo ak pi wo a: Nwa ak nimewo Blan

Koulè djenn: Nwa

4

5_

6

7


Paramèt kab(PVC izole kab):

No nan nwayo

Kwa nominal
zòn seksyon
(mm²)

Kondiktè
kalite

Epesè nominal
nan izolasyon
(mm)

Epesè nominal
nan djenn
(mm)

Apeprè.
An jeneral dyamèt
(mm)

Apeprè.
Pwa kab
(kg/km)

Max. Rezistans kondiktè nan 20ºC
(Ω/km)

1

2.5

RE

0.8

1.4

6.15

62

7.41

1

4

RE

1

1.4

7.5

85

4.61

1

6

RE

1

1.4

7.5

108

3.08

1

10

RM

1

1.4

8.6

155

1.83

1

16

RM

1

1.4

9.6

218

1.15

1

25

RM

1.2

1.4

11.1

318

0.727

1

35

RM

1.2

1.4

12.1

414

0.524

1

50

RM

1.4

1.4

13.7

552

0.387

1

70

RM

1.4

1.4

15.5

750

0.268

1

95

RM

1.6

1.5

17.6

1020

0.193

1

120

RM

1.6

1.6

19.3

1259

0.153

1

150

RM

1.8

1.6

21

1546

0.124

1

185

RM

2

1.7

23.2

1913

0.101

1

240

RM

2.2

1.8

26.2

2471

0.0775

1

300

RM

2.4

2

29.2

3097

0.062

2

1.5

RE

0.8

1.8

10

147

12.1

2

2.5

RE

0.8

1.8

10.7

179

7.41

2

4

RM

1

1.8

13

268

4.61

2

6

RM

1

1.8

14.2

337

3.08

2

10

RM

1

1.8

16.2

472

1.83

2

16

RM

1

1.8

18.2

644

1.15

3

1.5

RE

0.8

1.8

10.4

166

12.1

3

2.5

RE

0.8

1.8

11.3

212

7.41

3

4

RE

1

1.8

13.1

299

4.61

3

4

RM

1

1.8

13.8

318

4.61

3

6

RE

1

1.8

14.2

380

3.08

3

6

RM

1

1.8

15

402

3.08

3

10

RM

1

1.8

17.1

570

1.83

3

16

RM

1

1.8

19.2

789

1.15

3

25

RM

1.2

1.8

22.1

1141

0.727

3

35

RM

1.2

1.8

24.1

1462

0.524

3

50

RM

1.4

1.8

27.6

1964

0.387

3

70

RM

1.6

2.1

36.3

3635

0.268

3

95

RM

1.6

2.2

40

4488

0.193

4

1.5

RE

0.8

1.8

11.6

198

12.1

4

2.5

RE

0.8

1.8

12.1

252

7.41

4

4

RE

1

1.8

14

355

4.61

4

4

RM

1

1.8

15.1

391

4.61

4

6

RE

1

1.8

15.4

465

3.08

4

6

RM

1

1.8

16.5

501

3.08

4

10

RM

1

1.8

18.6

702

1.83

4

16

RM

1

1.8

21.1

992

1.15

4

25

RM

1.2

1.8

24.2

1431

0.727

4

35

RM

1.2

1.8

26.6

1861

0.524

4

50

RM

1.4

1.9

30.9

2535

0.387

4

70

RM

1.4

2.1

35.1

3441

0.268

4

95

RM

1.6

2.2

40.4

4691

0.193

4

120

RM

1.6

2.4

44.2

5757

0.153

4

150

RM

1.8

2.5

48.5

7095

0.124

4

185

RM

2

2.7

53.9

8810

0.101

4

240

RM

2.2

2.9

61.1

11400

0.0775

5

1.5

RE

0.8

1.8

12

232

12.1

5

2.5

RE

0.8

1.8

13.1

302

7.41

5

4

RE

1

1.8

15.2

428

4.61

5

4

RM

1

1.8

16.6

477

4.61

5

6

RE

1

1.8

16.5

551

3.08

5

6

RM

1

1.8

18.2

618

3.08

5

10

RM

1

1.8

20.3

853

1.83

5

16

RM

1

1.8

23.1

1212

1.15

5

25

RM

1.2

1.8

26.6

1759

0.727

7

1.5

RE

0.8

1.8

12.9

280

12.1

7

2.5

RE

0.8

1.8

14.1

368

7.41

12

1.5

RE

0.8

1.8

16.6

475

12.1

12

2.5

RE

0.8

1.8

18.2

628

7.41

14

1.5

RE

0.8

1.8

17.1

515

12.1

19

1.5

RE

0.8

1.8

18.9

648

12.1

19

2.5

RE

0.8

1.8

20.3

843

7.41

27

1.5

RE

0.8

1.8

22.6

895

12.1

RE=kondiktè wonn, RM=kondiktè bloke, SM=kondiktè seksyon


PakeMateryèl(PVC izole kab):
Tanbou an bwa, Tanbou an bwa asye (fumigasyon)
Longè kab nan chak tanbou: 500m/1000m oswa selon kondisyon aktyèl longè kab.
