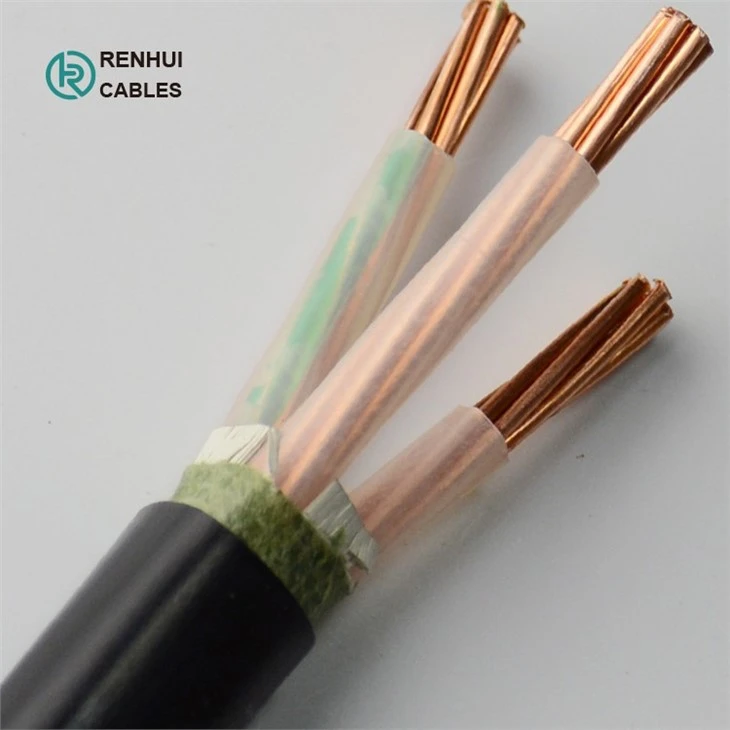

U-1000 R2V Kab
video
U-1000 R2V Kab

U-1000 R2V Kab

U-1000 R2V kabFrench kalite pouvwa ak enstalasyon kab
0.6/1KV, CU/XLPE/PVC Kab.
U-1000 R2V kab ka itilize nan tout enstalasyon kouran ki ba vòltaj.
Câbles milti nwayo yo adapte ak enstalasyon kontwòl remote ak telekontwòl.
Yo souvan itilize nan aplikasyon endistriyèl tankou distribisyon pouvwa, ekleraj ak sikwi kontwòl, osi byen ke nan bilding rezidansyèl ak komèsyal pou rezon fil elektrik. Câbles yo tou apwopriye pou itilize deyò.
Voye rechèch
Chat kounye a
Telechaje Katalòg
Sètifika CE-Renhui
ISO9001-Renhui
Dekri teren

U-1000 R2V Kab


1. Aplikasyon:



0.6/1KV, U-1000 R2V, CU/XLPE/PVC Kab ka itilize nan tout enstalasyon pouvwa ba vòltaj.
Câbles milti nwayo yo adapte ak enstalasyon kontwòl remote ak telekontwòl.



electric cable 146 electric cable 212 electric cable 256


2. Konstriksyon:


-Kondiktè
Solid kondiktè kwiv Klas 1, Stranded Copper kondiktè Klas 2 a IEC 60228, BS EN 60228.


-Izolasyon
Materyèl XLPE

-Kod koulè
Kòd koulè (1):
1 Nwayo: transparan, wouj oswa nwa
2 Nwayo: Wouj, Nwa
3 Nwayo: wouj, jòn, ble
4 Nwayo: wouj, jòn, ble, nwa
5 Nwayo: wouj, jòn, ble, nwa, vèt
Pi wo pase 5 nwayo: nwayo nwa ak chif blan


Kòd koulè (2):
1 Nwayo: transparan, mawon oswa ble
2 Nwayo: Brown oswa Blue
3 Nwayo: Brown, Nwa, Gri
4 Nwayo: ble, mawon, nwa, gri
5 Nwayo: vèt / jòn, ble, mawon, nwa, gri
Pi wo pase 5 nwayo: nwayo nwa ak chif blan


-Geni ekstèn:Ekstrude PVC.

electric cable 77 electric cable 19 electric cable 118



3. Estanda: NF C32-321
Lafimen ki ba (segondè EN 61034-2)
Ignifuge flanm dife Acc. EN 50265-2-1




4. Paramèt kab

Nwayo sèl

1_

Seksyon transvèsal nominal

Dyamèt kondiktè (apeprè)

Epesè izolasyon nominal

Epesè djenn nominal

Dyamèt jeneral (Apeprè)

mm^2

mm

mm

mm

mm

1x1.5

1.4

0.7

1.4

5.6

1x2.5

1.8

0.7

1.4

6.0

1x4

2.3

0.7

1.4

6.5

1x6

2.8

0.7

1.4

7.0

1x10

3.6

0.7

1.4

7.8

1x16

4.5

0.7

1.4

8.7

1x25

5.6

0.9

1.4

10.2

1x35

6.7

0.9

1.4

11.3

1x50

8.0

1

1.4

12.8

1x70

9.4

1.1

1.4

14.4

1x95

11.0

1.1

1.5

16.1

1x120

12.4

1.2

1.5

17.8

1x150

13.8

1.4

1.6

19.8

1x185

15.3

1.6

1.6

21.8

1x240

17.5

1.7

1.7

24.4

1x300

19.5

1.8

1.8

26.7

1x400

22.6

2

1.9

30.5

1x500

25.2

2.2

2.0

33.7

1x630

28.3

2.4

2.2

37.4

1x800

31.9

2.6

2.3

41.7

1x1000

35.7

2.8

2.4

46.2



De nwayo

2_

Seksyon transvèsal nominal

Dyamèt kondiktè (apeprè)

Epesè izolasyon nominal

Epesè djenn nominal

Dyamèt jeneral (Apeprè)

mm^2

mm

mm

mm

mm

2x1.5

1.4

0.7

1.8

9.2

2x2.5

1.8

0.7

1.8

10.0

2x4

2.3

0.7

1.8

11.0

2x6

2.8

0.7

1.8

12.0

2x10

3.6

0.7

1.8

13.6

2x16

4.5

0.7

1.8

15.4

2x25

5.6

0.9

1.8

18.4

2x35

6.7

0.9

1.8

20.6

2x50

8.0

1

1.8

23.6

2x70

9.4

1.1

1.8

26.8

2x95

11.0

1.1

1.9

30.2

2x120

12.4

1.2

2.0

33.7

2x150

13.8

1.4

2.2

37.5

2x185

15.3

1.6

2.3

41.6

2x240

17.5

1.7

2.5

46.7

2x300

19.5

1.8

2.6

51.4

2x400

22.6

2

2.9

58.9



Twa nwayo

3_

Seksyon transvèsal nominal

Dyamèt kondiktè (apeprè)

Epesè izolasyon nominal

Epesè djenn nominal

Dyamèt jeneral (Apeprè)

mm^2

mm

mm

mm

mm

3x1.5

1.4

0.7

1.8

9.6

3x2.5

1.8

0.7

1.8

10.5

3x4

2.3

0.7

1.8

11.6

3x6

2.8

0.7

1.8

12.6

3x10

3.6

0.7

1.8

14.4

3x16

4.5

0.7

1.8

16.3

3x25

5.6

0.9

1.8

19.5

3x35

6.7

0.9

1.8

21.9

3x50

8.0

1

1.8

25.1

3x70

9.4

1.1

1.9

28.7

3x95

11.0

1.1

2.0

32.4

3x120

12.4

1.2

2.1

36.1

3x150

13.8

1.4

2.3

40.3

3x185

15.3

1.6

2.4

44.6

3x240

17.5

1.7

2.6

50.2

3x300

19.5

1.8

2.7

55.2

3x400

22.6

2

3.0

63.3



Kat nwayo

4_

Seksyon transvèsal nominal

Dyamèt kondiktè (apeprè)

Epesè izolasyon nominal

Epesè djenn nominal

Dyamèt jeneral (Apeprè)

mm^2

mm

mm

mm

mm

4x1.5

1.4

0.7

1.8

10.4

4x2.5

1.8

0.7

1.8

11.3

4x4

2.3

0.7

1.8

12.5

4x6

2.8

0.7

1.8

13.7

4x10

3.6

0.7

1.8

15.7

4x16

4.5

0.7

1.8

17.8

4x25

5.6

0.9

1.8

21.5

4x35

6.7

0.9

1.8

24.1

4x50

8.0

1

1.8

27.8

4x70

9.4

1.1

2.0

32.0

4x95

11.0

1.1

2.1

36.1

4x120

12.4

1.2

2.3

40.2

4x150

13.8

1.4

2.4

44.9

4x185

15.3

1.6

2.6

49.8

4x240

17.5

1.7

2.8

56.0

4x300

19.5

1.8

3.0

61.7

4x400

22.6

2

3.2

70.7



Nwayo milti

5_

Seksyon transvèsal nominal

Dyamèt kondiktè (apeprè)

Epesè izolasyon nominal

Epesè djenn nominal

Dyamèt jeneral (Apeprè)

mm^2

mm

mm

mm

mm

5x1.5

1.4

0.7

1.8

11.2

7x1.5

1.4

0.7

1.8

12.0

10x1.5

1.4

0.7

1.8

14.8

12x1.5

1.4

0.7

1.8

15.2

14x1.5

1.4

0.7

1.8

16.0

19x1.5

1.4

0.7

1.8

17.6

21x1.5

1.4

0.7

1.8

18.4

24x1.5

1.4

0.7

1.8

20.4

30x1.5

1.4

0.7

1.8

21.6

40x1.5

1.4

0.7

1.8

26.0

48x1.5

1.4

0.7

1.8

26.4

61x1.5

1.4

0.7

1.9

29.0

5x2.5

1.8

0.7

1.8

12.2

7x2.5

1.8

0.7

1.8

13.2

10x2.5

1.8

0.7

1.8

16.4

12x2.5

1.8

0.7

1.8

16.9

14x2.5

1.8

0.7

1.8

17.7

19x2.5

1.8

0.7

1.8

19.6

21x2.5

1.8

0.7

1.8

20.6

24x2.5

1.8

0.7

1.8

22.8

30x2.5

1.8

0.7

1.8

24.1

40x2.5

1.8

0.7

1.9

29.4

48x2.5

1.8

0.7

1.9

29.9

61x2.5

1.8

0.7

2.0

32.8

Baj popilè: u-1000 r2v kab
