Cables anba tè, kab blende
1.Aplikasyon
Câbles sa yo yo itilize pou ekipman pou elektrisite nan sistèm enstalasyon vòltaj ki ba, Yo apwopriye pou enstalasyon andedan kay la ak deyò, nan kanal kab, anba tè, nan estasyon pouvwa ak switching, distribisyon enèji lokal, plant endistriyèl, kote pa gen okenn risk pou mekanik. domaj.
 |
 |
2.Konstriksyon
- Kondiktè
Kondiktè yo dwe swa nan Klas 1 oswa Klas 2 nan kwiv plenn oswa metal-kouvwi oswa nan aliminyòm plenn oswa alyaj aliminyòm, oswa nan Klas 5 nan kwiv plen oswa metal-kouvwi an akò ak IEC 60228.
- Izolasyon
Materyèl XLPE ak epesè yo dwe dapre IEC 60502 oswa BS 5467 rated pou 90C operasyon kontinyèl.
- Kòd koulè
|
Kòd koulè (1) |
Kòd koulè (2) |
||
|
1 Nwayo |
Wouj oswa nwa |
1 Nwayo |
Brown oswa ble |
|
2 Nwayo |
Wouj, Nwa |
2 Nwayo |
Mawon, ble |
|
3 Nwayo |
Wouj, jòn, ble |
3 Nwayo |
Brown, Nwa, Gri |
|
4 Nwayo |
Wouj, jòn, ble, nwa |
4 Nwayo |
Ble, mawon, nwa, gri |
|
5 Nwayo |
Wouj, jòn, ble, nwa, vèt |
5 Nwayo |
Vèt/jòn, ble, mawon, nwa, gri |
|
Pi wo pase 5 Cores |
Nwayo nwa ak chif blan |
Pi wo pase 5 Cores |
Nwayo nwa ak chif blan |
Lòt koulè ka fabrike sou demann.
-Asanble / kouvri enteryè
Kouvèti enteryè yo ka ekstrè oswa lapped. Pou câbles ki gen nwayo sikilè, eksepte câbles ki gen plis pase senk nwayo, yo dwe otorize yon kouvèti anndan lapèt sèlman si entèstis ki genyen ant nwayo yo ranpli anpil. Yo pèmèt yon lyan apwopriye anvan ou aplike yon kouvèti anndan ekstriye. Materyèl la se konpatib ak materyèl la posibilite,Materyèl yo itilize pou kouvri enteryè ak file dwe apwopriye pou tanperati a opere nan kab la ak konpatib ak materyèl la posibilite.Pou kab alojene gratis, kouvri anndan an ak file yo dwe tou konpoze alojene gratis. .
-Blende
Aliminyòm / galvanised asye / asye fil aplike helically sou kouvri enteryè a dapre IEC 60502-1, oswa doub kasèt aliminyòm / asye ak kwiv / fèblan fil kwiv tou ka fabrike sou demann.
-Genn ekstèn
Eksteryè djenn yo dwe nan extrudée PVC Kalite ST1/ST2 dapre IEC 60502-1, Polyethylene tip ST3/ST7, Halogen gratis konpoze ST8, Polychloroprene, polyethylene chlorosulfonated oswa polymère menm jan an, kalite SE1 yo disponib tou sou demann.
-Pfòmans dife nan djenn kab
Kab yo ka apwovizyone ak djenn espesyal PVC rezistan flanm dife pou konfòme yo ak egzijans tès flanm dife IEC 60332-3-22, IEC 60332-3-23 ak IEC 60332-3-24, materyèl san alojene konfòme yo ak IEC{{3} }/2 ak IEC 60684-2.
3.Paramèt kab

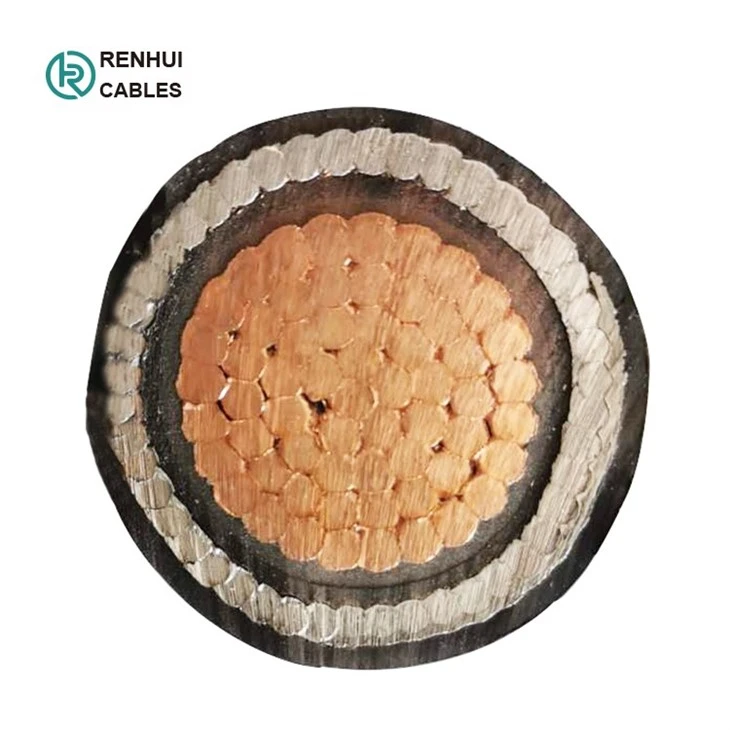

-Sèl nwayo blende kab
|
Nwayo sèl (fil aliminyòm blende) |
|
||||||
|
Seksyon transvèsal nominal |
Dyamèt kondiktè (apeprè) |
Epesè izolasyon nominal |
Nominal epesè kouvri enteryè |
Nominal fil alun dia. |
Epesè djenn nominal |
Dyamèt jeneral (Apeprè) |
|
|
mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
1x4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
10.9 |
|
|
1x6 |
2.8 |
0.7 |
1.0 |
0.8 |
1.8 |
11.4 |
|
|
1x10 |
3.6 |
0.7 |
1.0 |
0.8 |
1.8 |
12.2 |
|
|
1x16 |
4.5 |
0.7 |
1.0 |
0.8 |
1.8 |
13.1 |
|
|
1x25 |
5.6 |
0.9 |
1.0 |
0.8 |
1.8 |
14.6 |
|
|
1x35 |
6.7 |
0.9 |
1.0 |
1.25 |
1.8 |
16.6 |
|
|
1x50 |
8.0 |
1 |
1.0 |
1.25 |
1.8 |
18.1 |
|
|
1x70 |
9.4 |
1.1 |
1.0 |
1.25 |
1.8 |
19.7 |
|
|
1x95 |
11.0 |
1.1 |
1.0 |
1.6 |
1.8 |
22.0 |
|
|
1x120 |
12.4 |
1.2 |
1.0 |
1.6 |
1.8 |
23.6 |
|
|
1x150 |
13.8 |
1.4 |
1.0 |
1.6 |
1.8 |
25.4 |
|
|
1x185 |
15.3 |
1.6 |
1.0 |
1.6 |
1.8 |
27.4 |
|
|
1x240 |
17.5 |
1.7 |
1.0 |
1.6 |
1.9 |
29.9 |
|
|
1x300 |
19.5 |
1.8 |
1.0 |
2.0 |
2.0 |
33.1 |
|
|
1x400 |
22.6 |
2 |
1.2 |
2.0 |
2.2 |
37.3 |
|
|
1x500 |
25.2 |
2.2 |
1.2 |
2.0 |
2.3 |
40.5 |
|
-De nwayo blende câbles
|
De nwayo (Galvanize fil asye blende) |
|
||||||
|
Seksyon transvèsal nominal |
Dyamèt kondiktè (apeprè) |
Epesè izolasyon nominal |
Nominal epesè kouvri enteryè |
Nominal Steel Fil dia. |
Epesè djenn nominal |
Dyamèt jeneral (Apeprè) |
|
|
mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
2x1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
12.8 |
|
|
2x2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
13.6 |
|
|
2x4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
14.6 |
|
|
2x6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
16.5 |
|
|
2x10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
18.1 |
|
|
2x16 |
4.5 |
0.7 |
1.0 |
1.25 |
1.8 |
19.9 |
|
|
2x25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
23.6 |
|
|
2x35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.8 |
25.8 |
|
|
2x50 |
8.0 |
1 |
1.0 |
1.6 |
1.9 |
29.0 |
|
|
2x70 |
9.4 |
1.1 |
1.0 |
2.0 |
2.0 |
33.2 |
|
|
2x95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.1 |
37.1 |
|
|
2x120 |
12.4 |
1.2 |
1.2 |
2.0 |
2.3 |
40.5 |
|
|
2x150 |
13.8 |
1.4 |
1.2 |
2.5 |
2.4 |
45.4 |
|
|
2x185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.6 |
49.9 |
|
|
2x240 |
17.5 |
1.7 |
1.4 |
2.5 |
2.7 |
55.1 |
|
|
2x300 |
19.5 |
1.8 |
1.6 |
2.5 |
2.9 |
60.2 |
|
|
2x400 |
22.6 |
2 |
1.6 |
2.5 |
3.1 |
67.7 |
|
-Twa nwayo blende câbles
|
Twa nwayo (Galvanize fil asye blende) |
|
||||||
|
Seksyon transvèsal nominal |
Dyamèt kondiktè (apeprè) |
Epesè izolasyon nominal |
Nominal epesè kouvri enteryè |
Nominal Steel Fil dia. |
Epesè djenn nominal |
Dyamèt jeneral (Apeprè) |
|
|
mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
3x1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
13.2 |
|
|
3x2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
14.1 |
|
|
3x4 |
2.3 |
0.7 |
1.0 |
0.8 |
1.8 |
15.2 |
|
|
3x6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
17.1 |
|
|
3x10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
18.9 |
|
|
3x16 |
4.5 |
0.7 |
1.0 |
1.25 |
1.8 |
20.8 |
|
|
3x25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
24.7 |
|
|
3x35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.8 |
27.2 |
|
|
3x50 |
8.0 |
1 |
1.0 |
1.6 |
1.9 |
30.6 |
|
|
3x70 |
9.4 |
1.1 |
1.0 |
2.0 |
2.1 |
35.2 |
|
|
3x95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.2 |
39.3 |
|
|
3x120 |
12.4 |
1.2 |
1.2 |
2.0 |
2.3 |
43.0 |
|
|
3x150 |
13.8 |
1.4 |
1.4 |
2.5 |
2.5 |
48.6 |
|
|
3x185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.7 |
53.0 |
|
|
3x240 |
17.5 |
1.7 |
1.4 |
2.5 |
2.8 |
58.5 |
|
|
3x300 |
19.5 |
1.8 |
1.6 |
2.5 |
3.0 |
64.0 |
|
|
3x400 |
22.6 |
2 |
1.6 |
3.15 |
3.3 |
73.5 |
|
-Twa am ak latè nwayo blende câbles
|
Twa nwayo+1 (Galvanize fil asye blende) |
|
||||||||
|
Seksyon transvèsal nominal |
Dyamèt kondiktè (apeprè) |
Epesè izolasyon nominal |
Nominal epesè kouvri enteryè |
Nominal Steel Fil dia. |
Epesè djenn nominal |
Dyamèt jeneral (Apeprè) |
|||
|
mm^2 |
(3) mm |
(1) mm |
(3) mm |
(1) mm |
mm |
mm |
mm |
mm |
|
|
3x 16/10 |
4.5 |
3.6 |
0.7 |
0.7 |
1 |
1.6 |
1.8 |
22.7 |
|
|
3x 25/16 |
5.6 |
4.5 |
0.9 |
0.7 |
1 |
1.6 |
1.8 |
26.5 |
|
|
3x 35/16 |
6.7 |
4.5 |
0.9 |
0.7 |
1 |
1.6 |
1.9 |
29 |
|
|
3x 50/25 |
8.0 |
5.6 |
1 |
0.9 |
1 |
1.6 |
2.1 |
33 |
|
|
3x 70/35 |
9.4 |
6.7 |
1.1 |
0.9 |
1.2 |
2 |
2.2 |
38 |
|
|
3x 95/50 |
11.0 |
8.0 |
1.1 |
1 |
1.2 |
2 |
2.3 |
42.4 |
|
|
3x120/70 |
12.4 |
9.4 |
1.2 |
1.1 |
1.2 |
2 |
2.5 |
48.0 |
|
|
3x150/70 |
13.8 |
9.4 |
1.4 |
1.1 |
1.4 |
2.5 |
2.7 |
52 |
|
|
3x185/95 |
15.3 |
11.0 |
1.6 |
1.1 |
1.4 |
2.5 |
2.8 |
57.2 |
|
|
3x240/120 |
17.5 |
12.4 |
1.7 |
1.2 |
1.6 |
2.5 |
3.1 |
64 |
|
|
3x300/150 |
19.5 |
13.8 |
1.8 |
1.4 |
1.6 |
2.5 |
3.2 |
69.8 |
|
|
3x400/185 |
22.6 |
15.3 |
2 |
1.6 |
1.6 |
3.15 |
3.6 |
78.6 |
|
-Kat nwayo, kab blende
|
Kat nwayo (Galvanize fil asye blende) |
|
||||||
|
Seksyon transvèsal nominal |
Dyamèt kondiktè (apeprè) |
Epesè izolasyon nominal |
Nominal epesè kouvri enteryè |
Nominal Steel Fil dia. |
Epesè djenn nominal |
Dyamèt jeneral (Apeprè) |
|
|
mm^2 |
mm |
mm |
mm |
mm |
mm |
mm |
|
|
4x1.5 |
1.4 |
0.7 |
1.0 |
0.8 |
1.8 |
14.0 |
|
|
4x2.5 |
1.8 |
0.7 |
1.0 |
0.8 |
1.8 |
14.9 |
|
|
4x4 |
2.3 |
0.7 |
1.0 |
1.25 |
1.8 |
17.0 |
|
|
4x6 |
2.8 |
0.7 |
1.0 |
1.25 |
1.8 |
18.2 |
|
|
4x10 |
3.6 |
0.7 |
1.0 |
1.25 |
1.8 |
20.2 |
|
|
4x16 |
4.5 |
0.7 |
1.0 |
1.6 |
1.8 |
23.0 |
|
|
4x25 |
5.6 |
0.9 |
1.0 |
1.6 |
1.8 |
26.7 |
|
|
4x35 |
6.7 |
0.9 |
1.0 |
1.6 |
1.9 |
29.5 |
|
|
4x50 |
8.0 |
1 |
1.0 |
2.0 |
2.1 |
34.2 |
|
|
4x70 |
9.4 |
1.1 |
1.2 |
2.0 |
2.2 |
38.8 |
|
|
4x95 |
11.0 |
1.1 |
1.2 |
2.0 |
2.3 |
42.9 |
|
|
4x120 |
12.4 |
1.2 |
1.4 |
2.5 |
2.5 |
48.6 |
|
|
4x150 |
13.8 |
1.4 |
1.4 |
2.5 |
2.7 |
53.2 |
|
|
4x185 |
15.3 |
1.6 |
1.4 |
2.5 |
2.8 |
58.1 |
|
|
4x240 |
17.5 |
1.7 |
1.6 |
2.5 |
3.1 |
64.8 |
|
|
4x300 |
19.5 |
1.8 |
1.6 |
2.5 |
3.2 |
70.4 |
|
|
4x400 |
22.6 |
2 |
1.8 |
3.15 |
3.6 |
81.3 |
|
4. Pwogrè Pwodiksyon
5. Sètifika:
 |
 |
6.Anbalaj:
- Tanbou an bwa asye (fumigasyon)
Longè kab nan chak tanbou: 1000m/2000m oswa selon kondisyon aktyèl longè kab.
-Gwosè tanbou:
Dapre longè kab ak gwosè veso
Yo nan lòd yo site ou pri egzat, tanpri di nou kantite longè kab ou bezwen. Pi gwo kantite, plis benefis rabè pare pou ou!
- Pò anbakman:
Kendao, oswa lòt pò selon kondisyon ou yo.
-Machandisman lanmè:
FOB/C&F/CIF sitasyon yo tout disponib.
 |
 |
 |
