1.Product non: fil asye blende kab
Cu/XLPE/PVC/SWA/PVC kab pouvwa dwe itilize pou enstalasyon fiks andedan kay la ak deyò nan kanal kab oswa dirèkteman nan tè a.
Kab blende fil asye (SWA Cable) se estanda ki aksepte pou enstalasyon anba tè, ki fèt pou itilize nan kouran elektrik.
Câbles sa yo bay pwoteksyon mekanik e se poutèt sa apwopriye pou itilizasyon ekstèn, antèman dirèk ak zòn kote estrès mekanik toudenkou espere.
 |
 |
 |

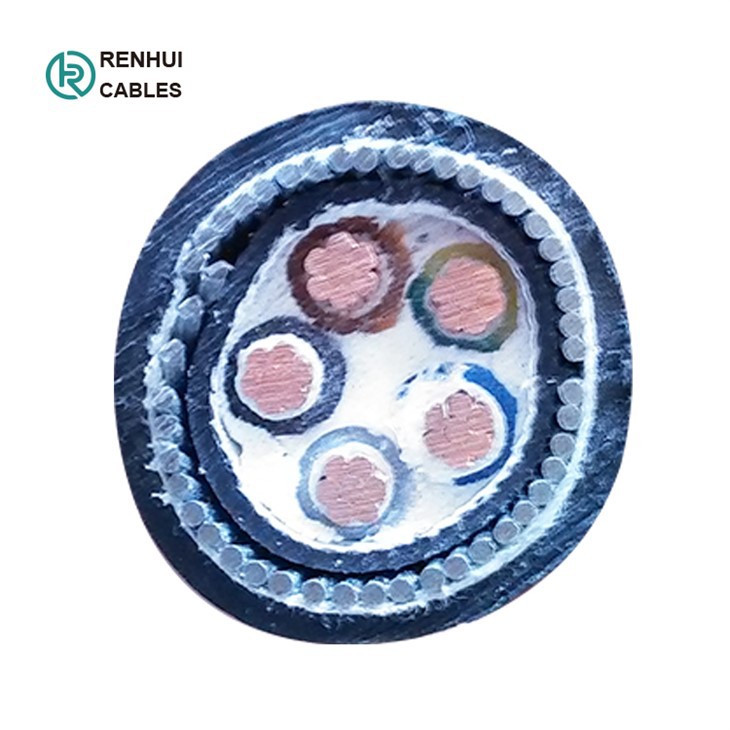

2.Desen an nan fil asye blende kab
|
 |
 |
 |
3.Cable detay: fil asye blende kab
|
Materyèl kondiktè: |
Kwiv% 2c IEC60228 |
|
Kondiktè: |
Kondiktè kwiv solid oswa bloke |
|
Izolasyon: |
XLPE (Polyetilèn ki lye kwaze), IEC60502-1 |
|
Kalite zam: |
Fil asye galvanize blende |
|
Eksteryè djenn: |
PVC, IEC60502-1 |
|
Entèn djenn: |
PVC, IEC60502-1 |
|
Koulè djenn: |
Nwa |
|
San plon: |
Wi |
|
Voltaj nominale Uo/U (Um): |
600/1000V |
|
Tanperati enstalasyon: |
Minimòm: 0 degre c Maksimòm: 60 degre |
|
Kalite enstalasyon: |
Deyò antèman dirèk |
|
Tanperati operasyon: |
Maksimòm: 90 degre |
|
Tanperati maksimòm kondiktè kout sikwi: |
250 degre |
|
Ignifuge flanm dife: |
IEC 60332-1 |
4.Datasheet nan fil asye blende kab
|
Seksyon kwa mm2 |
Stranding mm |
Apeprè pwa kg/km |
Apeprè dyamèt jeneral |
Gwosè glann mm |
Yon sèl cleat |
Nom. Max. DC-reziste kondiktè 20 degre ohm / km |
Rating aktyèl mete amp dirèk |
|
2 Nwayo SWA: Brown & Blue |
|||||||
|
2 x 1.5 |
7/0.53 |
243 |
11.06 |
16 |
0.5 |
12.10 |
38 |
|
2 x 2.5 |
7/0.67 |
355 |
12.4 |
20s |
0.5 |
7.41 |
49 |
|
2 x 4.0 |
7/0.85 |
393 |
13.38 |
20s |
0.6 |
4.61 |
65 |
|
2 x 6.0 |
7/1.04 |
450 |
14.38 |
20 |
0.6 |
3.08 |
81 |
|
2 x 10 |
7/1.35 |
590 |
16.18 |
20 |
0.7 |
1.83 |
109 |
|
2 x 16 |
7/1.70 |
897 |
19.06 |
25 |
0.8 |
1.15 |
141 |
|
2 x 25 |
7/2.14 |
1,050 |
20.0 |
25 |
0.8 |
0.727 |
183 |
|
2 x 35 |
7/2.52 |
1,400 |
23.2 |
32 |
0.9 |
0.524 |
219 |
|
2 x 50 |
19/1.78 |
1,750 |
25.1 |
32 |
1.0 |
0.387 |
259 |
|
2 x 70 |
19/2.14 |
2,200 |
28.5 |
32 |
1.2 |
0.268 |
317 |
|
2 x 95 |
19/2.52 |
3,100 |
32.9 |
32 |
1.4 |
0.193 |
381 |
|
2 x 120 |
37/2.03 |
3,700 |
35.1 |
40 |
1.4 |
0.153 |
433 |
|
2 x 150 |
37/2.25 |
4,350 |
37.8 |
40 |
1.6 |
0.124 |
485 |
|
2 x 185 |
37/2.52 |
5,700 |
44.7 |
50s |
1.8 |
0.0991 |
547 |
|
2 x 240 |
61/2.25 |
7,280 |
49.0 |
50 |
2.0 |
0.0754 |
632 |
|
2 x 300 |
61/2.52 |
8,750 |
53.4 |
63s |
2.0 |
0.0601 |
708 |
|
2 x 400 |
61/2.85 |
10,700 |
59.0 |
63s |
TC9 |
0.0470 |
- |
|
3 Nwayo SWA: Brown, Nwa & Gri |
|||||||
|
3 x 1.5 |
7/0.53 |
341 |
12.17 |
16 |
0.5 |
12.10 |
32 |
|
3 x 2.5 |
7/0.67 |
374 |
13.55 |
20s |
0.6 |
7.41 |
42 |
|
3 x 4.0 |
7/0.85 |
458 |
14.68 |
20s |
0.6 |
4.61 |
55 |
|
3 x 6.0 |
7/1.04 |
558 |
15.87 |
20 |
0.7 |
3.08 |
69 |
|
3 x 10 |
7/1.35 |
841 |
18.63 |
20 |
0.8 |
1.83 |
92 |
|
3 x 16 |
7/1.70 |
1,070 |
20.78 |
25 |
0.9 |
1.15 |
119 |
|
3 x 25 |
7/2.14 |
1,625 |
24.9 |
32 |
1.0 |
0.727 |
152 |
|
3 x 35 |
7/2.52 |
1,950 |
27.8 |
32 |
1.1 |
0.524 |
182 |
|
3 x 50 |
19/1.78 |
2,300 |
28.0 |
32 |
1.2 |
0.387 |
217 |
|
3 x 70 |
19/2.14 |
3,075 |
32.2 |
32 |
1.4 |
0.268 |
266 |
|
3 x 95 |
19/2.52 |
4,225 |
37.0 |
40 |
1.6 |
0.193 |
319 |
|
3 x 120 |
37/2.03 |
5,100 |
40.2 |
50s |
1.8 |
0.153 |
363 |
|
3 x 150 |
37/2.25 |
6,510 |
45.3 |
50s |
1.8 |
0.124 |
406 |
|
3 x 185 |
37/2.52 |
7,845 |
49.5 |
50 |
2.0 |
0.0991 |
458 |
|
3 x 240 |
61/2.25 |
9,900 |
55.6 |
63s |
TC9 |
0.0754 |
529 |
|
3 x 300 |
61/2.52 |
13,560 |
59.6 |
63 |
TC10 |
0.0601 |
592 |
|
3 x 400 |
61/2.85 |
14,720 |
65.8 |
75s |
TC11 |
0.0470 |
667 |
|
4 Nwayo SWA: Brown, Nwa, Gri & Ble |
|||||||
|
4 x 1.5 |
7/0.53 |
351 |
12.88 |
20s |
0.5 |
12.10 |
32 |
|
4 x 2.5 |
7/0.67 |
429 |
14.43 |
20s |
0.6 |
7.41 |
42 |
|
4 x 4.0 |
7/0.85 |
538 |
16.87 |
20 |
0.6 |
4.61 |
55 |
|
4 x 6.0 |
7/1.04 |
670 |
17.87 |
20 |
0.7 |
3.08 |
69 |
|
4 x 10 |
7/1.35 |
998 |
20.1 |
25 |
0.8 |
1.83 |
92 |
|
4 x 16 |
7/1.70 |
1,272 |
22.4 |
25 |
0.9 |
1.15 |
119 |
|
4 x 25 |
7/2.14 |
1,940 |
27.0 |
32 |
1.0 |
0.727 |
152 |
|
4 x 35 |
7/2.52 |
2,390 |
30.1 |
32 |
1.2 |
0.524 |
182 |
|
4 x 50 |
19/1.78 |
2,925 |
31.5 |
32 |
1.4 |
0.387 |
217 |
|
4 x 70 |
19/2.14 |
4,200 |
37.4 |
40 |
1.6 |
0.268 |
266 |
|
4 x 95 |
19/2.52 |
5,355 |
40.9 |
50s |
1.8 |
0.193 |
319 |
|
4 x 120 |
37/2.03 |
6,925 |
46.6 |
50 |
2.0 |
0.153 |
363 |
|
4 x 150 |
37/2.25 |
8,200 |
50.2 |
50s |
2.0 |
0.124 |
406 |
|
4 x 185 |
37/2.52 |
9,975 |
55.8 |
63s |
TC9 |
0.0991 |
458 |
|
4 x 240 |
61/2.52 |
12,700 |
62.5 |
63 |
TC10 |
0.0754 |
529 |
|
4 x 300 |
61/2.85 |
15,275 |
67.4 |
75s |
TC11 |
0.0601 |
592 |
|
4 x 400 |
61/3.20 |
19,875 |
77.0 |
75 |
TC12 |
0.0470 |
667 |
|
5 Nwayo SWA: mawon, nwa, gri, ble, jòn ak vèt |
|||||||
|
5 x 1.5 |
7/0.53 |
395 |
13.72 |
20s |
0.6 |
12.10 |
32 |
|
5 x 2.5 |
7/0.67 |
497 |
15.46 |
20s |
0.6 |
7.41 |
42 |
|
5 x 4.0 |
7/0.85 |
674 |
17.38 |
20 |
0.7 |
4.61 |
55 |
|
5 x 6.0 |
7/1.04 |
868 |
19.05 |
20 |
0.8 |
3.08 |
69 |
|
5 x 10 |
7/1.35 |
1,197 |
22.06 |
25 |
0.9 |
1.83 |
92 |
|
5 x 16 |
7/1.70 |
1,780 |
24.14 |
25 |
1.1 |
1.15 |
119 |
|
5 x 25 |
7/2.14 |
2,435 |
28.4 |
32 |
1.2 |
0.727 |
152 |
|
5 x 35 |
7/2.52 |
2,800 |
33 |
40 |
1.4 |
0.524 |
182 |
|
5 x 50 |
19/1.78 |
3,850 |
38.0 |
40 |
1.6 |
0.387 |
217 |
|
5 x 70 |
19/2.14 |
5,100 |
42.9 |
50s |
1.8 |
0.268 |
266 |
|
5 x 95 |
19/2.52 |
7,700 |
52.1 |
50 |
TC9 |
0.193 |
319 |
|
7 Nwayo SWA: nwayo nimewote blan ak enprime nwa |
|||||||
|
7 x 1.5 |
7/0.53 |
449 |
14.65 |
20 |
0.6 |
12.10 |
32 |
|
7 x 2.5 |
7/0.67 |
564 |
16.53 |
20 |
0.8 |
7.41 |
42 |
|
7 x 4.0 |
7/0.85 |
824 |
18.96 |
25 |
0.8 |
4.61 |
55 |
|
7 x 6.0 |
7/1.04 |
1,105 |
21.6 |
25 |
0.9 |
3.08 |
69 |
|
7 x 10 |
7/1.35 |
1,610 |
25.3 |
25 |
1 |
1.83 |
98 |
|
7 x 16 |
7/1.70 |
2,225 |
28.45 |
32 |
1.2 |
1.15 |
119 |
|
7 x 25 |
7/2.14 |
3,880 |
38.4 |
40 |
1.4 |
0.727 |
152 |
|
12 Nwayo SWA: nwayo nimewote blan ak enprime nwa |
|||||||
|
12 x 1.5 |
7/0.53 |
756 |
18.9 |
25 |
0.8 |
12.10 |
32 |
|
12 x 2.5 |
7/0.67 |
971 |
21.76 |
25 |
0.9 |
7.41 |
42 |
|
12 x 4.0 |
7/0.85 |
1,403 |
25.97 |
32 |
1.0 |
4.61 |
55 |
|
12 x 6.0 |
7/1.04 |
1,910 |
28.1 |
32 |
1.2 |
3.08 |
69 |
|
12 x 10 |
7/1.35 |
2,590 |
32.4 |
32 |
1.4 |
1.83 |
98 |
|
19 Nwayo SWA: Nwayo Resansman Blan ak Enpresyon Nwa |
|||||||
|
19 x 1.5 |
7/0.53 |
992 |
21.99 |
25 |
0.9 |
12.10 |
32 |
|
19 x 2.5 |
7/0.67 |
1,447 |
25.63 |
25 |
1.0 |
7.41 |
42 |
|
19 x 4.0 |
7/0.85 |
1,870 |
28.46 |
32 |
1.1 |
4.61 |
55 |
5.Pake: Ekspòte tanbou an bwa.
