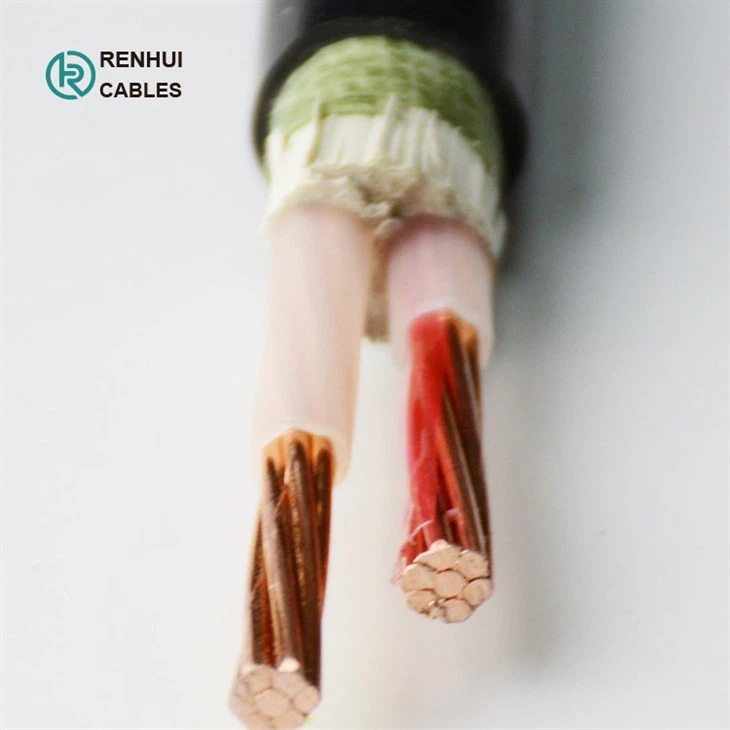

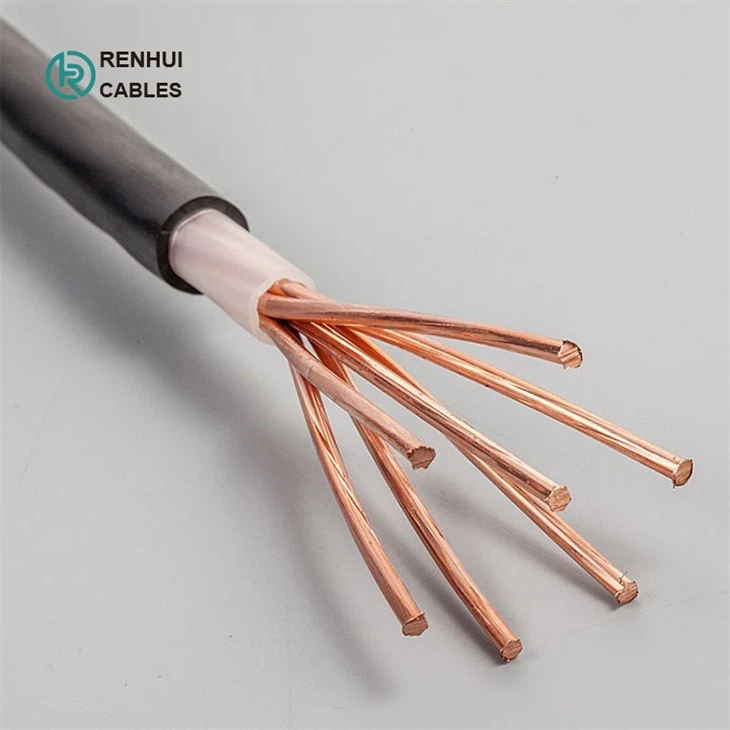

16 25 35 50 70 95 120 150 185 240 300mm Single Multi Core Copper Conductor XLPE izole PVC Power Cable NYY NYM N2XY Kab
Aplikasyon
Apwopriye pou enstalasyon andedan kay la: sitou nan estasyon ekipman pou pouvwa ak deyò: nan kanal kab, anba tè, ak sou plato kab pou endistri, switch-boards ak estasyon elektrik. Akòz bon tap mete ak karakteristik mekanik, kab sa a apwopriye lè pwoteksyon mekanik nesesè oswa nan aplikasyon kote domaj mekanik yo espere rive.

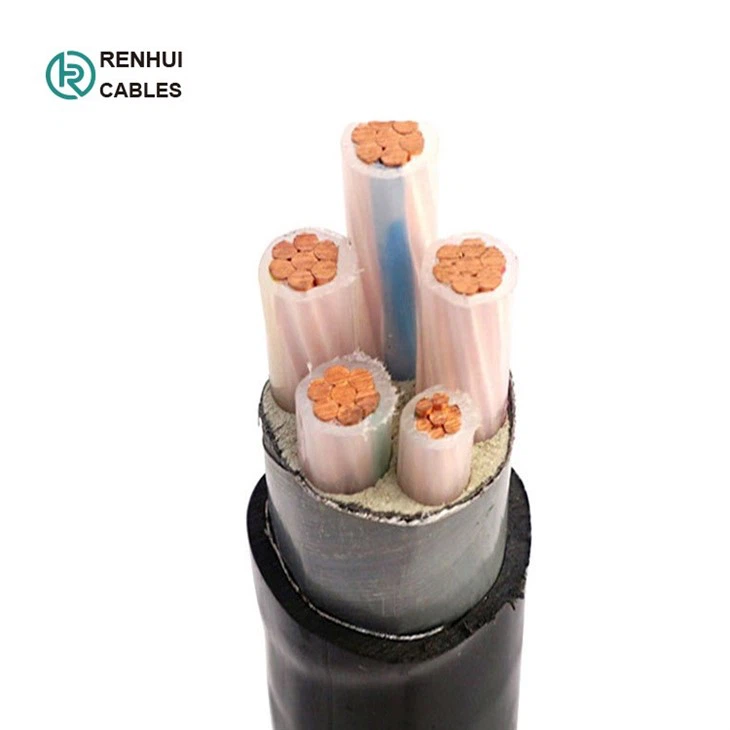

16 25 35 50 70 95 120 150 185 240 300mm Single Multi Core Copper Conductor XLPE izole PVC Power Cable NYY NYM N2XY Kab
 |
 |
 |
Estanda
Se kab pouvwa a fabrike dapre IEC 60502-1:2004.
Li se apwopriye yo dwe mete nan liy lan kab pouvwa ak vòltaj rated nan {{0}}.6/1kv (U0/U) pou transmisyon pouvwa.
 |
 |

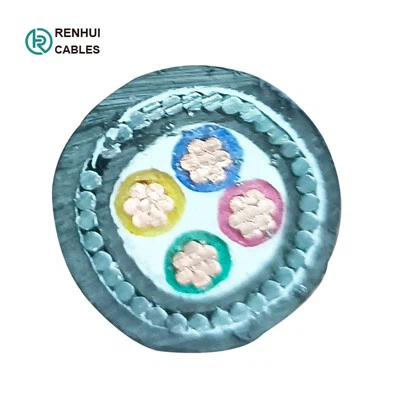

Underground Power Cablese spesifikasyon
|
Modèl |
Non |
Sit aplikasyon an |
Zòn seksyon |
Nwayo |
To voltag |
|
YJV |
XLPE izole PVC kouvri kab pouvwa |
Andedan kay la, nan tinèl oswa tranche kab, pa kapab pote fòs ekstèn mekanik. Yon sèl-nwayo kab mete nan kanal mayetik yo pa pèmèt. |
4 6 10 16 25 35 50
70 95 120 150 185
240 300 400 |
1 2 3 4 5 3+1 3+2 4+1 |
0.6/1KV |
|
YJLV |
XLPE izole PVC kouvri kab pouvwa |
||||
|
yjy |
XLPE izole PE kouvri kab pouvwa |
||||
|
YJLY |
XLPE izole PE kouvri kab pouvwa |
||||
|
YJV22 |
XLPE izole asye kasèt blende PVC kouvri kab pouvwa |
Andedan kay la, tinèl, tranche kab oswa mete anba tè, kapab pote fòs ekstèn mekanik, men li pa kapab peye yon gwo rale. |
|||
|
YJLV22 |
XLPE izole asye kasèt blende PVC kouvri kab pouvwa |
||||
|
YJV23 |
XLPE izole asye tep blende PE gaine pouvwa kab |
||||
|
YJLV23 |
XLPE izole asye tep blende PE gaine pouvwa kab |
||||
|
YJV32 |
XLPE izole, fil asye blende PVC kab pouvwa |
Andedan kay la, nan tinèl, tranche kab, byen oswa antere, kapab pote fòs ekstèn mekanik ak yon sèten tansyon. |
|||
|
YJLV32 |
XLPE izole, fil asye blende PVC kab pouvwa |
||||
|
YJV33 |
XLPE izole, fil asye blende PE kouvri kab pouvwa |
||||
|
YJLV33 |
XLPE izole, fil asye blende PE kouvri kab pouvwa |

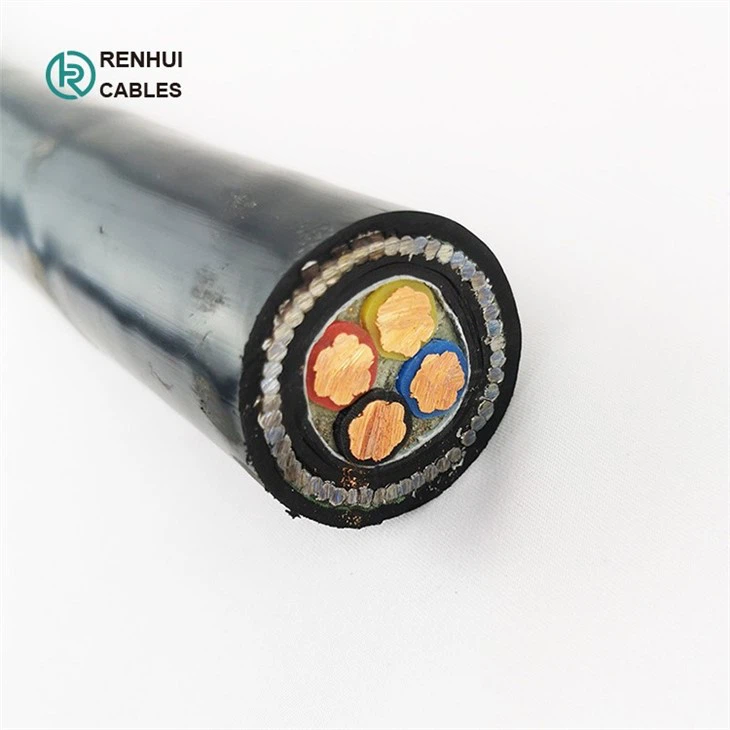

16 25 35 50 70 95 120 150 185 240 300mm Single Multi Core Copper Conductor XLPE izole PVC Power Cable NYY NYM N2XY Kab
| Nimewo Pati | Seksyon kwa | Bloke | Apeprè pwa | Apeprè dyamèt jeneral | Gwosè glann | Yon sèl Cleat | Nom. Max. DC-reziste kondiktè 20 degre C | Evalyasyon aktyèl mete dirèk |
| (mm% c2�) | (mm) | KG/KM | (mm) | (mm) | (Ohm/km) | (Amp) | ||
| SWAPVC4X1.5 | 4 x 1.5 | 7/0.53 | 351 | 12.88 | 20s | 0.5 | 12.1 | 32 |
| SWAPVC4X2.5 | 4 x 2.5 | 7/0.67 | 429 | 14.43 | 20s | 0.6 | 7.41 | 42 |
| SWAPVC4X4.0 | 4 x 4.0 | 7/0.85 | 538 | 16.87 | 20 | 0.6 | 4.61 | 55 |
| SWAPVC4X6.0 | 4 x 6.0 | 7/1.04 | 670 | 17.87 | 20 | 0.7 | 3.08 | 69 |
| SWAPVC4X10 | 4 x 10 | 7/1.35 | 998 | 20.1 | 25 | 0.8 | 1.83 | 92 |
| SWAPVC4X16 | 4 x 16 | 7/1.70 | 1,272 | 22.4 | 25 | 0.9 | 1.15 | 119 |
| SWAPVC4X25 | 4 x 25 | 7/2.14 | 1,940 | 27 | 32 | 1 | 0.727 | 152 |
| SWAPVC4X35 | 4 x 35 | 7/2.52 | 2,390 | 30.1 | 32 | 1.2 | 0.524 | 182 |
| SWAPVC4X50 | 4 x 50 | 19/1.78 | 2,925 | 31.5 | 32 | 1.4 | 0.387 | 217 |
| SWAPVC4X70 | 4 x 70 | 19/2.14 | 4,200 | 37.4 | 40 | 1.6 | 0.268 | 266 |
| SWAPVC4X95 | 4 x 95 | 19/2.52 | 5,355 | 40.9 | 50s | 1.8 | 0.193 | 319 |
| SWAPVC4X120 | 4 x 120 | 37/2.03 | 6,925 | 46.6 | 50 | 2 | 0.153 | 363 |
| SWAPVC4X150 | 4 x 150 | 37/2.25 | 8,200 | 50.2 | 50s | 2 | 0.124 | 406 |
| SWAPVC4X185 | 4 x 185 | 37/2.52 | 9,975 | 55.8 | 63s | TC9 | 0.0991 | 458 |
| SWAPVC4X240 | 4 x 240 | 61/2.52 | 12,700 | 62.5 | 63 | TC10 | 0.0754 | 529 |
| SWAPVC4X300 | 4 x 300 | 61/2.85 | 15,275 | 67.4 | 75s | TC11 | 0.0601 | 592 |
| SWAPVC4X400 | 4 x 400 | 61/3.20 | 19,875 | 77 | 75 | TC12 | 0.047 | 667 |
Kalite No Nwayo Seksyon transvèsal nominal
| Kalite | No de Nwayo | Seksyon transvèsal nominal |
| Cu (AL) / XLPE (PVC) / PVC (PE) Cu(AL)/XLPE(PVC)/ATA/PVC(PE)Cu(AL)/XLPE/AWA/PVC(PE) |
1 | 1.5-1000 |
| Cu (AL)/XLPE(PVC)% 2FSTA/PVC (PE) Cu(AL)/XLPE(PVC)/SWA/PVC(PE) |
2,3,4,5 | 1.5-400 |
| 3+1,4+1,3+2 | 2.5-400 |
Zòn koup transvèsal kondiktè net
| Seksyon transvèsal nominal | Nwayo prensipal la | 2.5 | 4 | 6 | 10 | 16 | 25 | 35 | 50 |
| Nwayo net | 1.5 | 2.5 | 4 | 6 | 10 | 16 | 16 | 25 | |
| Seksyon transvèsal nominal | Nwayo prensipal la | 70 | 95 | 120 | 150 | 185 | 240 | 300 | 400 |
| Nwayo net | 35 | 50 | 70 | 70 | 95 | 120 | 150 | 185 |
Karakteristik
DC Rezistans nan kab fini nan 20 ºC pou chak km pa plis pase sa ki annapre yo:
| Seksyon kwa nominal mm2 | 15 | 2.5 | 4 | 6 | 10 | 16 | 25 |
| Cu nwayo | 12.1 | 7.41 | 4.61 | 3.08 | 1.83 | 1.15 | 0.727 |
| Al nwayo | 18.1 | 12.1 | 7.41 | 4.61 | 3.08 | 1.91 | 1.20 |
| Seksyon kwa nominal mm2 | 35 | 50 | 70 | 95 | 120 | 150 | 185 |
| Cu nwayo | 0.524 | 0.387 | 0.268 | 0.193 | 0.153 | 0.124 | 0.0991 |
| Al nwayo | 0.868 | 0.641 | 0.443 | 0.320 | 0.253 | 0.206 | 0.164 |
| Seksyon kwa nominal mm2 | 240 | 300 | 400 | 500 | 630 | 800 | 1000 |
| Cu nwayo | 0.0754 | 0.0601 | 0.0470 | 0.0366 | 0.0283 | 0.0221 | 0.0176 |
| Al nwayo | 0.125 | 0.100 | 0.0778 | 0.0605 | 0.0469 | 0.0367 | 0.0291 |
Desen:
Anbalaj
Tanbou asye an bwa (fumigasyon)
Longè kab nan chak tanbou: 1000m/2000m oswa selon kondisyon aktyèl longè kab.
Gwosè tanbou:
Dapre longè kab ak gwosè veso
* Pou w ka site pri egzat ou, tanpri di nou kantite longè kab ou bezwen an. Pi gwo kantite, plis benefis rabè pare pou ou!
Pò anbakman:
Tianjin, Qingdao, oswa lòt pò selon kondisyon ou yo.
machandiz lanmè:
FOB/C&F/CIF sitasyon yo tout disponib.
